Spiral Silicone Heater | 475 mm x 550 mm, 240 V, 25 W

• Details
• Data
• Reviews

Details

Detailed Description:

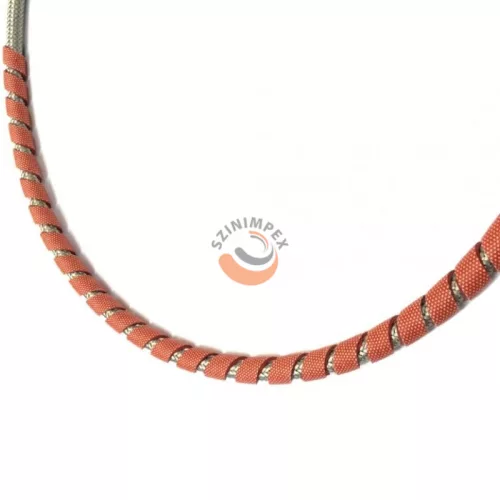

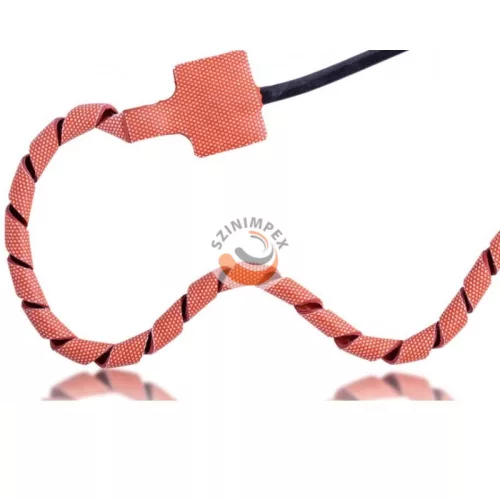

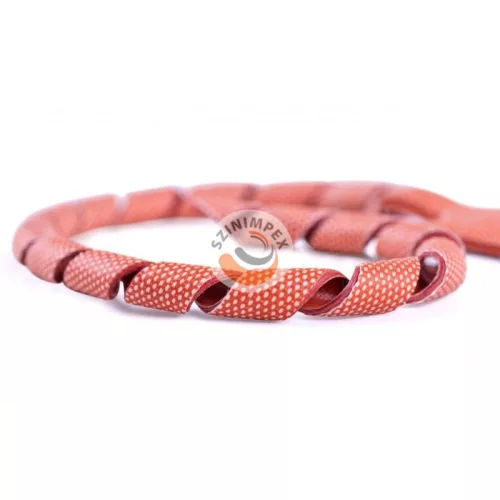

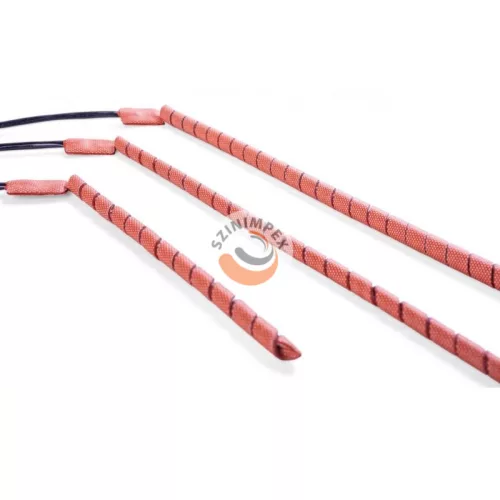

These spiral silicone heating elements are engineered to support a wide range of piping configurations. Whether straight, curved, or rigid pipelines, the spiral-wrapped heaters adapt easily and ensure efficient, reliable heat transfer. Their durable construction and straightforward installation make them suitable for various pipe diameters.

The robust design ensures extended service life across industrial and commercial applications. The user-focused configuration enables simplified installation while maintaining optimal heating performance.

Pipe heating cables can be customized to meet specific voltage and power requirements. Sensors and integrated digital thermostats can also be incorporated, allowing temperature control across a broad operating range.

Technical Data:

• Dimensions: 475 x 550 mm
• Voltage: 240 V
• Power: 25 W
• Power density: 0.27 W/cm²

Key Features:

• Moisture and chemical resistant
• Flexible and lightweight
• UL option available
• Standard lengths: 205 mm – 1020 mm
• Target diameters: 6.35 mm – 12.7 mm (other sizes available upon request)
• Temperature range: -60 °C – 200 °C

Typical Applications:

• Liquid or gas transfer systems
• Semiconductor manufacturing processes
• Freeze protection
• Condensation prevention
• Heat maintenance in preheated systems

Data

Sizes:

475 mm x 550 mm

Voltage:

240 V

Wattage:

25 W

Weight:

400 g/pcs
