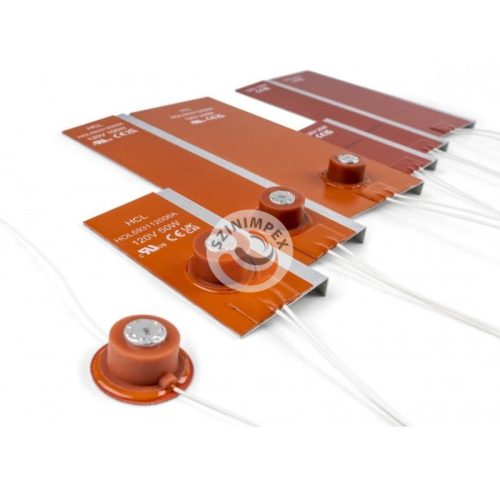

Enclosure heater with mounted thermostat (15°C) 100W/110V | 50x125 mm

Detailed Description:

The enclosure heater is a reliable solution for protecting control cabinets and electrical equipment. It helps prevent condensation and frost formation, which can damage sensitive electronic components in the long run. The heating element is mounted on a pre-fixed installation plate, making it easy to install and securely fasten. It is available in multiple power and voltage variants, allowing adaptation to various industrial and technical needs. The enclosure heater can optionally be equipped with a temperature limiter that detects the internal or external temperature of the control cabinet. This feature automatically regulates the temperature, preventing overheating or insufficient heating, ensuring uninterrupted operation of the equipment.

The heating elements are available in multiple standard sizes and power ratings, but customized solutions can also be requested. Additionally, various sensors, thermal fuses, and other controllers can be integrated to ensure efficient operation in diverse environments.

Why is it beneficial?

Protects electronics – Prevents moisture from damaging sensitive components.
Effective against freezing – Ensures proper operation even in low temperatures.
Easy installation – Comes with a pre-mounted fixing plate for effortless integration.
Automatic temperature control – Available with a thermostat that maintains an optimal temperature at all times.

Key Features:

Even heating – Manufactured using etched foil technology for precise and efficient heat distribution.
Condensation protection – Built-in or remote air temperature sensor thermostats ensure stable operation.
Simple installation – Pre-mounted installation plate enables quick and secure mounting.
Certified safety – Variants available with UL / CSA component certification.

Applications:

ATMs and banking machines – Prevents condensation and winter freezing.
Temperature control panels – Ensures a stable internal temperature.
Valve control enclosures – Prevents component failures due to cold.
Security and surveillance systems – Protects sensitive electronics from moisture.
Industrial and electrical cabinets – Provides freeze and moisture protection even in extreme conditions.

Technical Specifications:

Power and voltage variants:

• 120V: 25W, 50W, 100W, 200W
• 240V: 50W, 100W, 200W

Structural properties:

• 500mm (20") PTFE wires as standard
• Etched foil technology for precise and even heating
• Thermostat with temperature sensor for automatic regulation

Durability and Resistance:

The silicone heating element provides excellent resistance against:
Environmental factors – Weather, UV radiation, fungi, and bacteria.
Chemical exposure – Acetone, alcohol, acetic acid, brake fluid, grease, 10% saline, and sulfuric acid.
Mechanical stress – Gas-permeable and steam-resistant up to 130°C and 2.5 bar pressure.

Installation and Mounting:

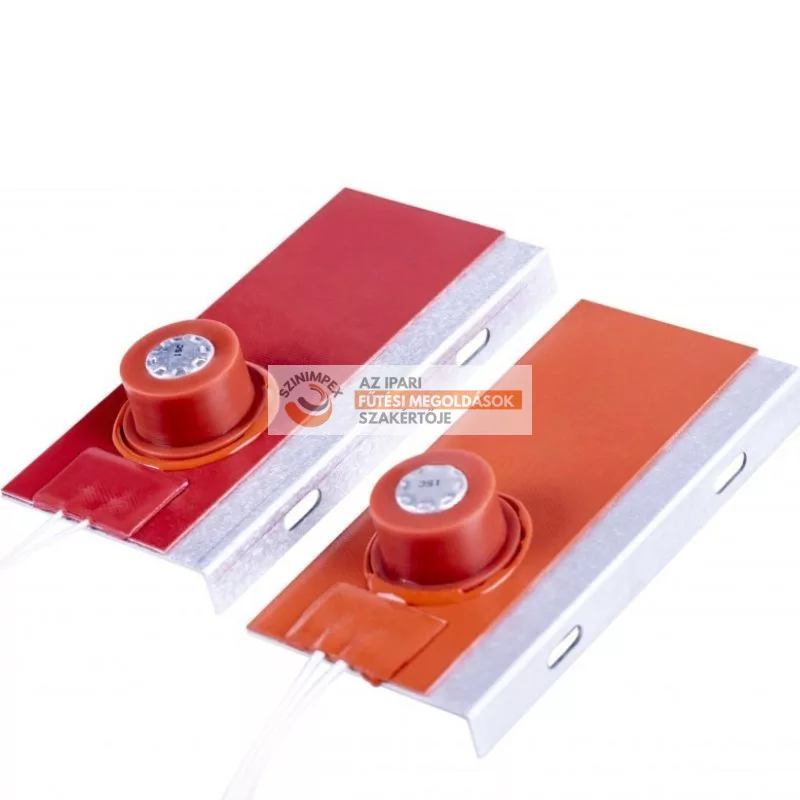

Factory-mounted aluminum installation plate for quick setup.
Two mounting holes for secure attachment.
Mounting recommendation: Heating elements with built-in thermostats should be installed vertically, with the sensor facing downward.
