Drum heater for 200 L drum 0–90 °C | 1950 × 850 × 14 mm | 1500 W, 230 V

Detailed Description

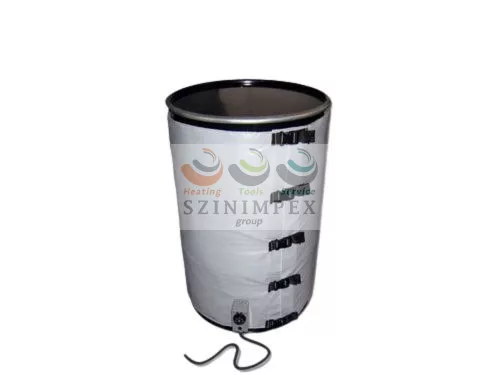

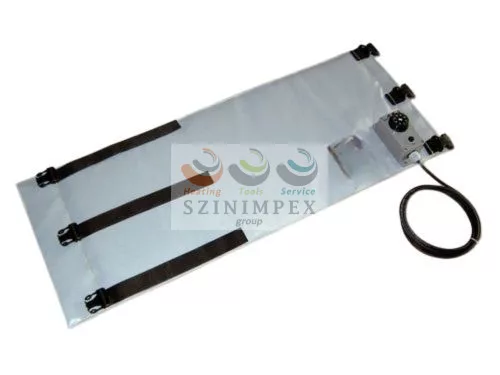

The 200 L drum heater is an electric heating jacket designed for heating drums and regulating their temperature. It operates at 1500 W from a 230 V supply and measures approximately 1950 × 850 × 14 mm. It is suitable for drum circumferences of 1800–1950 mm. The wide 850 mm heating surface covers a large area of the drum. Nylon straps and plastic buckles provide adjustable fastening. The built-in analog thermostat provides a 0–90 °C control range. The Ni/Cr 80/20 heating conductor has double thermal silicone insulation, and the jacket uses silicone-treated textured fiberglass fabric.

Product Parameters

• Product type: drum heater / heating jacket
• Drum size: 200 L
• Application: drum heating and temperature control
• Power: 1500 W
• Supply voltage: 230 V / 50 Hz
• Temperature control range: 0–90 °C
• Length: 1950 mm
• Width: 850 mm
• Overall thickness: 14 mm
• Dimensions: approx. 1950 × 850 × 14 mm
• Applicable drum circumference: 1800–1950 mm
• Fastening: nylon straps with plastic buckles
• Control: analog thermostat
• On/off differential: 4 °C
• Sensor: sensor integrated into the heating element
• Maximum operating temperature: 90 °C ±5 °C
• Minimum operating temperature: −40 °C ±5 °C
• Heating conductor material: Ni/Cr 80/20
• Heating conductor insulation: double thermal silicone insulation
• Heating conductor operating temperature range: −40–180 °C
• Heating jacket insulation: silicone-treated fiberglass fabric
• Fiberglass fabric: 100% textured fiberglass
• Surface treatment: translucent silicone coating on one side
• Weft tensile strength: 5000 N / 5 cm
• Warp tensile strength: 3000 N / 5 cm
• Dielectric strength: 1500 V / 1 minute, ≥ 50 GΩ
• Power cable: 3 × 2,5 mm² H07RN-F
• Safety thermostat: internal micro-thermostat, 91 °C (+5 °C / −15 K)
• Applicable drum materials: steel, fiberglass, polyester, polyethylene
• Application environment: non-classified area
• Fire resistance: IMO Res. MSC.61(67) FTP-Code
• Compliance: 2014/35/EU, 2014/30/EU, EN 60335-1, EN ISO 12100-1 and EN ISO 12100-2
