Drum heater for 200 L drum 0–90 °C | 1950 × 450 × 14 mm | 1000 W, 230 V

Drum heater for 200 L drum 0–90 °C | 1950 × 450 × 14 mm | 1000 W, 230 V

Available to order

729.55 €

Availability:

External warehouse

Delivery time:

10-15 working days

Quantity discount:

5 pcs

-152.81 €/pcs

576.75 €/pcs

Short Description

1000 W thermostatic drum heater for heating and temperature control of 200 L drums. The 230 V heating jacket has an adjustable range of 0–90 °C and is secured with adjustable nylon straps and plastic buckles.

Details

Detailed Description

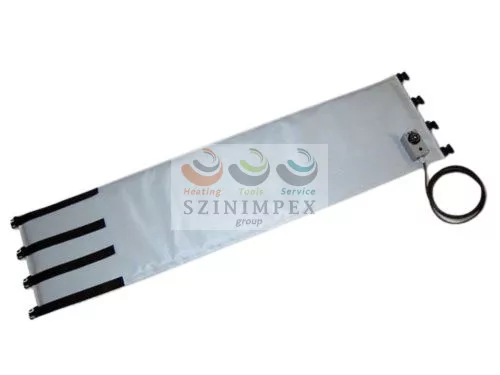

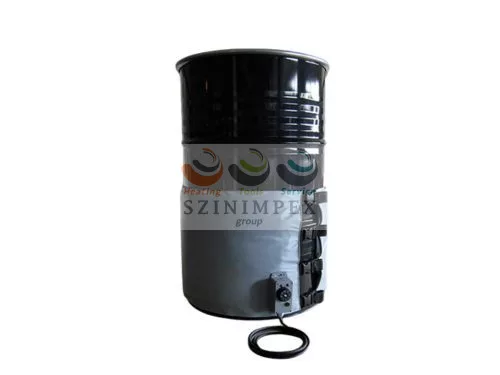

The 200 L drum heater is an electric heating jacket designed for heating drums and regulating their temperature. It operates at 1000 W from a 230 V supply and measures approximately 1950 × 450 × 14 mm. It is suitable for drum circumferences of 1800–1950 mm and is secured with nylon straps and plastic buckles. The built-in analog thermostat provides a 0–90 °C control range. The Ni/Cr 80/20 heating conductor has double thermal silicone insulation, and the jacket uses silicone-treated textured fiberglass fabric. The product is intended for use in non-classified areas.

Product Parameters

Product type: drum heater / heating jacket
Drum size: 200 L
Application: drum heating and temperature control
Power: 1000 W
Supply voltage: 230 V / 50 Hz
Temperature control range: 0–90 °C
Length: 1950 mm
Width: 450 mm
Overall thickness: 14 mm
Dimensions: approx. 1950 × 450 × 14 mm
Fastening: nylon straps with plastic buckles
Control: analog thermostat
On/off differential: 4 °C
Sensor: sensor integrated into the heating element
Maximum operating temperature: 90 °C ±5 °C
Minimum operating temperature: −40 °C ±5 °C
Heating conductor material: Ni/Cr 80/20
Heating conductor insulation: double thermal silicone insulation
Heating conductor operating temperature range: −40–180 °C
Heating jacket insulation: silicone-treated fiberglass fabric
Fiberglass fabric: 100% textured fiberglass
Surface treatment: translucent silicone coating on one side
Weft tensile strength: 5000 N / 5 cm
Warp tensile strength: 3000 N / 5 cm
Dielectric strength: 1500 V / 1 minute, ≥ 50 GΩ
Power cable: 3 × 2,5 mm² H07RN-F
Safety thermostat: internal micro-thermostat, 91 °C (+5 °C / −15 K)
Applicable drum materials: steel, fiberglass, polyester, polyethylene
Application environment: non-classified area
Fire resistance: IMO Res. MSC.61(67) FTP-Code
Compliance: 2014/35/EU, 2014/30/EU, EN 60335-1, EN ISO 12100-1 and EN ISO 12100-2

Data

Sizes:

1950 × 450 × 14 mm

Voltage:

230 V

Wattage:

1000 W

Weight:

4 kg/pcs
