Drum heater for 100 L steel drum 0–90 °C | 1650 × 350 × 14 mm | 750 W, 230 V

Detailed Description

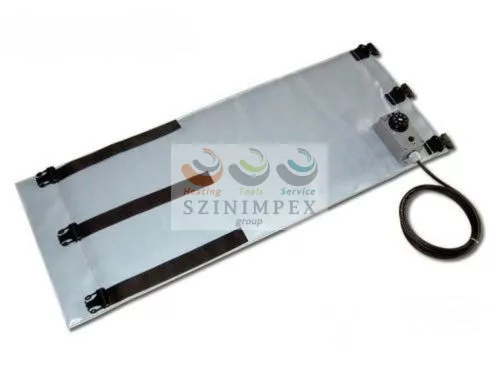

The 100 L drum heater is an electric heating jacket designed for heating steel drums and regulating their temperature. It operates at 750 W from a 230 V / 50 Hz supply and measures approximately 1650 × 350 × 14 mm, for drum circumferences of 1500–1650 mm. It is secured with nylon straps and plastic buckles. The analog thermostat provides a 0–90 °C control range, with the temperature sensor integrated into the heating element. A separate safety micro-thermostat is also included. The Ni/Cr 80/20 heating conductor has double thermal silicone insulation, while the jacket uses silicone-treated, 100% textured fiberglass fabric. The product is intended for use in non-classified areas.

Product Parameters

• Product type: drum heater / heating jacket
• Drum size: 100 L
• Recommended drum material: steel
• Application: drum heating and temperature control
• Power: 750 W
• Supply voltage: 230 V / 50 Hz
• Temperature control range: 0–90 °C
• Length: 1650 mm
• Width: 350 mm
• Overall thickness: 14 mm
• Dimensions: approx. 1650 × 350 × 14 mm
• Drum circumference: 1500–1650 mm
• Fastening: nylon straps with plastic buckles
• Control: analog thermostat
• On/off differential: 4 °C
• Sensor: sensor integrated into the heating element
• Maximum operating temperature: 90 °C ±5 °C
• Minimum operating temperature: −40 °C ±5 °C
• Heating conductor material: Ni/Cr 80/20
• Heating conductor insulation: double thermal silicone insulation
• Heating conductor operating temperature range: −40–180 °C
• Heating jacket insulation: silicone-treated fiberglass fabric
• Fiberglass fabric: 100% textured fiberglass
• Surface treatment: translucent silicone coating on one side
• Weft tensile strength: 5000 N / 5 cm
• Warp tensile strength: 3000 N / 5 cm
• Dielectric strength: 1500 V / 1 minute, ≥ 50 GΩ
• Power cable: 3 × 1 mm² H07RN-F
• Safety thermostat: internal micro-thermostat, 91 °C (+5 °C / −15 K)
• Application environment: non-classified area
• Fire resistance: IMO Res. MSC.61(67) FTP-Code
• Compliance: 2014/35/EU, 2014/30/EU, EN 60335-1, EN ISO 12100-1 and EN ISO 12100-2
