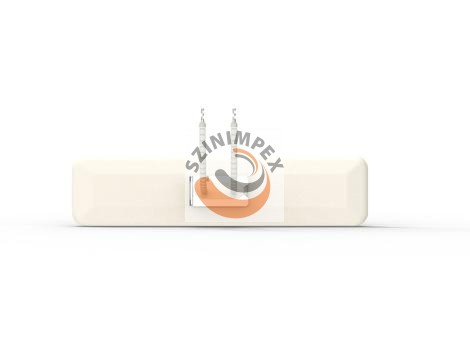

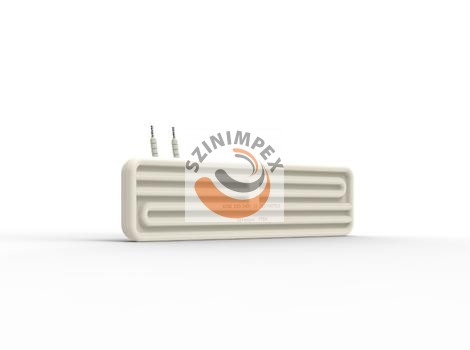

FFEH - Flat Hollow Ceramic Infrared Heater 400 W, 230 V | 245 x 60 mm | White

We also recommend the following product as an accessory

• Details
• Data
• Reviews

Details

Detailed Description

Features

Standard ceramic infrared elements are widely used in industrial and engineering applications, such as:

• Thermoforming
• Packaging
• Paint drying
• Printing industry applications
• Drying, gluing
• Sterilization, roasting

Additionally, they are highly effective in outdoor infrared heaters and saunas. Most plastics and many other materials absorb infrared radiation best in the 2-10 μm wavelength range, making ceramic heating elements one of the most popular radiant heating devices on the market.

Hollow-design ceramic elements provide more uniform heat distribution and are better suited for heating units placed closer to the target object.

Recommended radiation distance from the heater: 100 - 200 mm

Technical Specifications

• Material: Ceramic body with black glaze, built-in resistance heating wire
• Voltage: 230 V (standard)
• Maximum operating temperature: 800°C (1472°F)
• Useful wavelength range: 2 - 10 μm (microns) – long-wave
• Dimensions: 245 x 60 x 36 mm
• Average weight: 268 g
• Electrical connection: 120 mm long ceramic bead power lead
• Reflector thickness: Recommended thickness: 0.75-0.9 mm
• Min/max thickness: 0.5-1.5 mm
• Mounting hole size: 42 x 15 mm
• Recommended distance between elements: Minimum 5 mm
• Average lifespan: Up to 20,000 hours, depending on conditions
• Certification: CE
• Packaging dimensions (L x W x H): 252 x 65 x 64 mm
• Average surface temperature: 495°C
• Maximum power density: 24 kW/m²

Data

Sizes:

245 x 60 mm

Voltage:

230 V

Wattage:

400 W

Weight:

250 g/db
