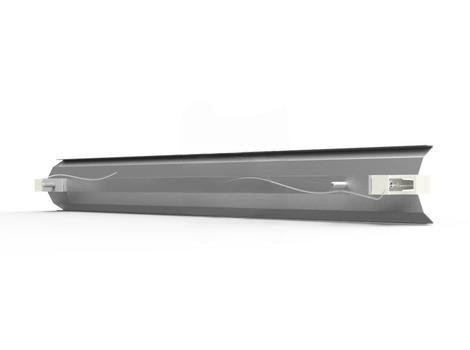

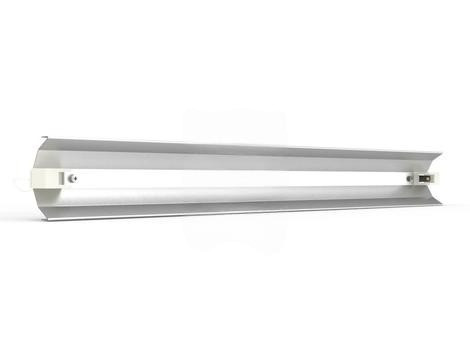

QTLR – Quartz Tungsten Long Reflector 2000 W (max.) | 497 x 62 mm

We also recommend the following product as an accessory

• Details
• Data
• Reviews

Details

Detailed Description:

These reflectors can be mounted side-by-side to form larger infrared heating panels, making them ideal for efficiently heating larger surfaces. Whether used for targeted zone heating or complete area coverage, they offer flexible installation options.

Their design is more efficient than traditional flat reflectors and can withstand temperatures up to 500 °C without discoloration or deformation of the surface or structure.

This polished aluminium-clad steel reflector is designed specifically for use with QTS and QHS type heating tubes (sold separately). Thanks to its high reflectivity, it significantly enhances radiant heat output. Units can be installed individually or in sequence to create larger infrared heating arrays.

Upon request, the reflector is also available in stainless steel.

Technical Specifications

• Material: 0.75 mm polished aluminium-clad steel reflector
•  Dimensions: 497 x 62 x 76 mm
• Average Weight: 401 g
• Certification: CE
• Assembly: 2 x M5 mounting bolts
  R7s holders with 200 mm leads
  Ø 0.75 mm wire with PTFE insulation

Data

Sizes:

497 x 62 mm

Wattage:

max. 2000 W

Weight:

150 g/db

Min. order quantity:

10 db
